What Is an H2S Meter?

Written by

An H2S meter, or hydrogen sulfide meter, is a special device that detects the concentration of hydrogen sulfide gas (H2S) in the air by measuring its readings. H2S, as you may know, is a highly toxic, colorless, and flammable gas known for its distinct “rotten egg” odor that can pose serious health risks even at low levels if not properly monitored and managed.

H2S Meter Video

If you smell rotten eggs 🤢 in your home or property 🏠, pay attention. This device is an H2S or Hydrogen Sulfide Meter and could be the difference between life and death ☠️. Hydrogen Sulfide smells like rotten eggs. At low levels, it’s highly flammable 🔥, at high levels, it can kill you. This is why you must equip your property and workspaces with H2s meters. Because these lifesaving devices will alert you to the first sign of hydrogen sulfide, that way you can take immediate action and avoid disaster. Do you have a H2S meter installed at your property?

How Does a Hydrogen Gas Detector Work?

The H2S meter uses electrochemical sensors that react with the hydrogen sulfide gas and produce an electrical signal comparable to how much of it is present at a certain time and location.

These meters are programmed to trigger audible and visual alarms when H2S levels exceed safe thresholds and alert occupants to take action. The advanced detectors can also log data for analysis to help identify leak patterns.

Importance of H2S Meters

Safety and Health Protection

Hydrogen sulfide detectors are essential tools in both residential and commercial plumbing due to the potential hazards caused by H2S gas. These can be:

  • Respiratory problems.
  • Eye & throat irritation.
  • Loss of consciousness.
  • Death due to longer exposure.

Continuous monitoring of H2S levels helps in ensuring that residents and workers in properties are not exposed to dangerous levels of the gas, thereby preventing potential health issues.

Plumbing Diagnosis

H2S gas can build due to the decomposition of organic matter in stagnant water in drains, sewer lines, traps, septic tanks, and other components of the plumbing system. It is highly corrosive, too, especially for metals such as iron and steel pipes. Also, its persistent exposure can lead to the deterioration of building materials. Detecting its presence with an H2S meter points out the problems in your plumbing and allows you to do timely maintenance and repair to safeguard the integrity of your property.

Ensuring Regulatory Compliance

Many building codes need you to keep track of and control the spread of hydrogen sulfide in residential and commercial properties for a safe environment. With H2S meters, you can abide by this standard, which rids you off of possible legal fines.

Types of H2S Meters Used in Residential and Commercial Plumbing

Portable H2S Meters

Portable H2S Meters are handheld devices that are lightweight, easy to carry, and let you analyze on-the-go immediate readings of the gas. They operate on rechargeable or replaceable batteries for convenience and are used by workers in an environment who want to do spot checks for hydrogen sulfide gas.

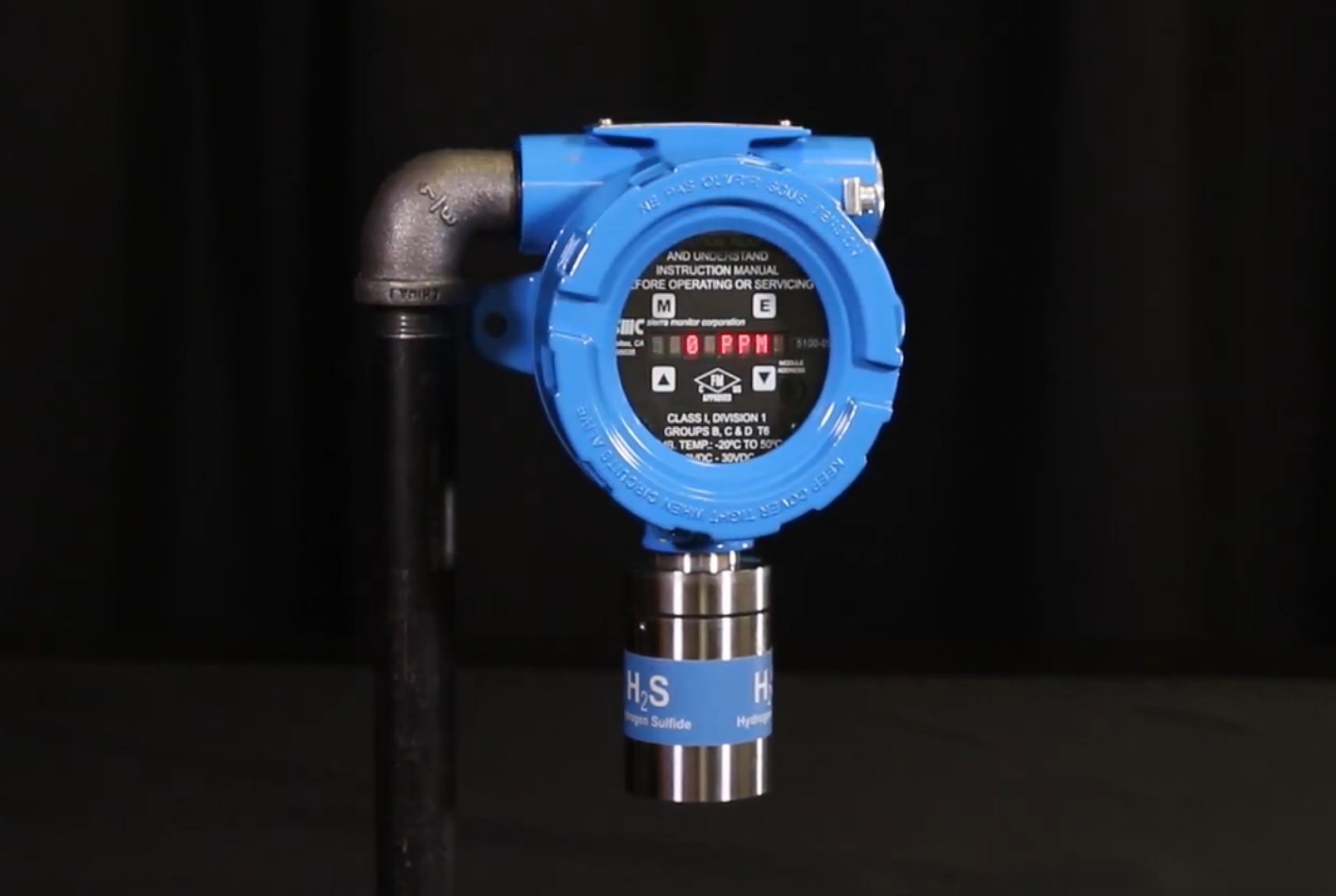

Fixed H2S Monitors

Fixed H2S monitors are immovable. They can provide real-time measurements of hydrogen sulfide gas levels in particular locations within a space. You can also link them with a management system for centralized data logging and improve your plumbing efficiency.

Multi-Gas H2S Detectors

Multi-Gas H2S meters are capable of providing holistic monitoring, detecting, and measuring hydrogen sulfide, along with other gases (carbon monoxide, methane, and oxygen), in plumbing environments. They are the best choice in large-scale plumbing systems.

Personal H2S Meters

Personal H2S detectors are compact and you can wear them for easy mobility while checking continuous hydrogen sulfide gas levels safely. Like portable H2S monitors, they are lightweight and run on batteries to let you quickly evaluate the gas buildup in confined areas like drains and sewer lines.

How To Use a H2S Monitor?

The personal gas monitor is equipped with sturdy clips or a ring that you can attach to your clothing (collar, lapel, or chest pocket), with the gas sensor uncovered and unobstructed. Make sure to wear it in the breathing zone, i.e., within 10 inches of your mouth or nose.

Next, walk closer to the area where you want to check the hydrogen sulfide gas levels. If your H2S meter detects the gas concentration, the alarm will go off with audible warnings, according to the readings, that will let you know about the potential hazards.

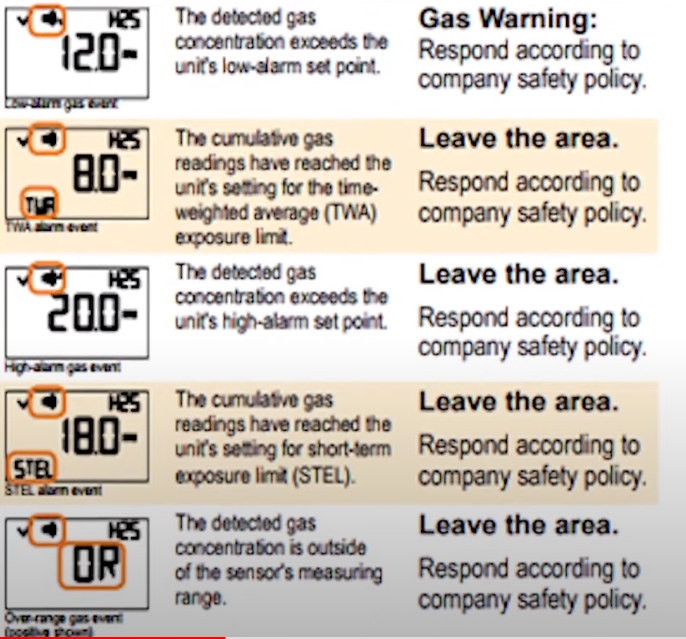

Personal H2S meter warning levels

The most important action to take when an alarm goes off is to leave the area. You can always stop and inspect the digital readout to assess the hazard from a safe distance in fresh air. It may take a short time for the alarm to switch off and for the measured reading to return to zero.

Note: Retreating to a safe area may be as simple as walking outside of the confined space, or it may require walking 50 feet or more away from the location. Consider meters that can be equipped with a sampling pump and a slim, flexible tube that can be inserted into a suspicious area to test for toxic conditions before human entry.

At What Level of H2S Do Detection Devices Go Into Alarm?

Your H2S meter typically alarms at 8-10 parts per million (ppm) for a low-level hydrogen sulfide concentration.  A higher alarm level is usually set at 15-20 ppm.


In conclusion, H2S meters play a critical role in both residential and commercial plumbing by ensuring safety, monitoring gas levels, and maintaining regulatory compliance. Whether through portable devices for personal safety monitoring or fixed systems for continuous environmental monitoring, these meters provide essential data that helps prevent health hazards, detect leaks, and protect infrastructure. By integrating advanced detection technologies and alarm systems, H2S meters not only safeguard occupants and workers but also contribute to efficient maintenance practices and environmental stewardship in plumbing operations.
